Martin Exterior Pixline 10

The Exterior PixLine 10 is a linear LED video fixture for media facades and creative installations. The Exterior PixLine 10 can be combined with a wide variety of lenses and diffusers for the right look for every application.

The Exterior PixLine 10 is driven by the Martin P3 System Controller family for easy setup and video display, and it is also backwards compatible with DMX. The fixtures can be fully customised in terms of length and colour to match every installation requirement, while the power source is hidden.

Wide variety of pixel pitch, lens and diffusers options for flexibility of look
Fully outdoor-rated and customisable in terms of length and colour
Easy setup and cabling for clean installation

10 mm pixel pitch
250 cd per meter calibrated
160 lumen per foot calibrated
High-quality 16-bit per colour image processing technology
Pixel-level brightness and colour calibration for optimal image quality
P3/DMX controllable (automatic protocol detection)
Intuitive mapping and addressing via P3 System Controller
Combined power/data input (single cable for power and data input)
Supported by integrated power and data processor (P3 PowerPort 1500 or P3 PowerPort 1000 IP) and simple cabling system
Available in standard length of 1280 mm and 320 mm (customised lengths also available)

Spec sheet

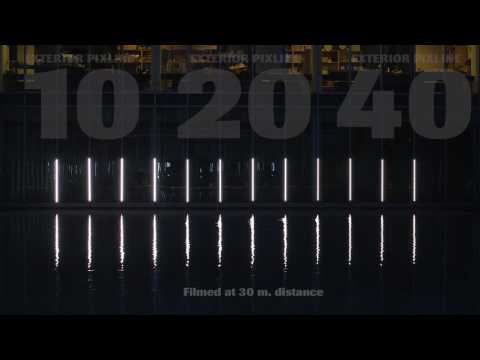

Watch

SKU	Manufacturer’s SKU	Name	Colour/description
MAR1037	90356840HU	Ext PixLine 10 RGB 1280mm As Len Rgt Alu	Asymmetric Lens, 1280mm
MAR1038	90356845HU	Ext PixLine 10 RGB 320mm As Len Rgt Alu	Asymmetric Lens Right, 320mm.
MAR1039	90356850HU	Ext PixLine 10 RGB 1280mm As Len Lft Alu	Asymmetric Lens Left, 1280mm.
MAR1040	90356855HU	Ext PixLine 10 RGB 320mm As Len Lft Alu	Asymmetric Lens Left, 320mm.
MAR1041	90356860HU	Ext PixLine 10 RGB 1280mm Squ Dif Fr Alu	Square Diffuser Front, 1280mm
MAR1042	90356865HU	Ext PixLine 10 RGB 320mm Squ Dif Fr Alu	Square Diffuser Front, 320mm
MAR1043	90356870HU	Ext PixLine 10 RGB 1280mm Rnd Dif Fr Alu	Round Diffuser Front, 1280mm
MAR1044	90356875HU	Ext PixLine 10 RGB 320mm Rnd Dif Fr Alu	Round Diffuser Front, 320mm
MAR1045	90356880HU	Ext PixLine 10 RGB 1280mm Diff Front Alu	Diffuser Front, 1280mm
MAR1046	90356885HU	Ext PixLine 10 RGB 320mm Diff Front Alu	Diffuser Front, 320mm
MAR1047	90356890HU	Ext PixLine 10 RGB 1280mm Clr Front Alu	Clear Front, 1280mm
MAR1048	90356895HU	Ext PixLine 10 RGB 320mm Clr Front Alu	Clear Front, 320mm
